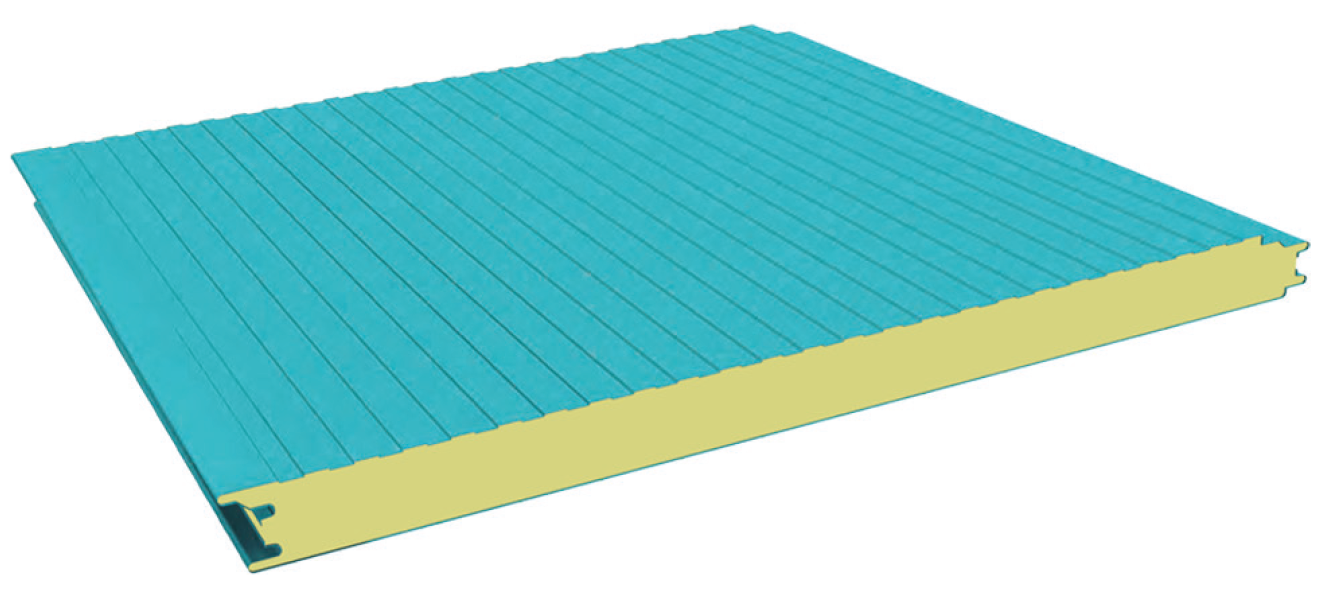

Our Hidden screw wall panel Provides high insulation and aesthetic solutions:

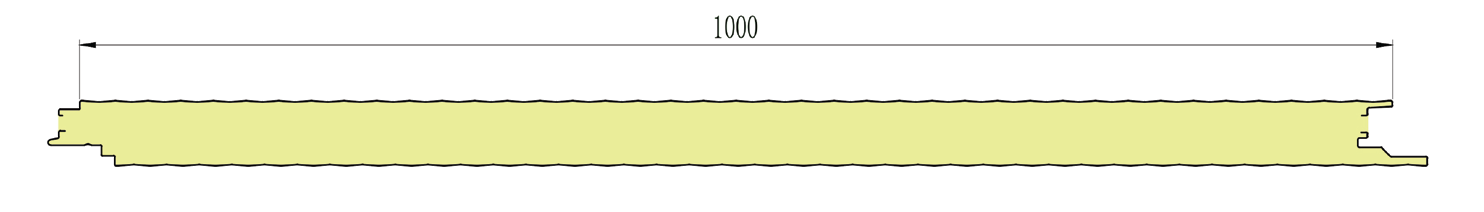

Panel form is hidden screw.
Our panel can be manufactured with micro wave, Diamond and mesa surface form.
It can be combined with the sinus and semi-sinus hidden screw type panels.
It can be manufactured with PIR and PUR core alternative.
It allows vertical and horizontal installation. Provides high insulation
Core materials protect your structures against water, heat and sound; PIR insulation provides superior fire protection.
Can be manufactured with several color options

Technical Specifications

Core Thicknesses (K)	Insulation Density	Steel Thickness PPGI	Thermal Conductivity	Reaction To Fire
50 - 75 mm	PUR 40 (±2) kg/m3 PIR 42 (±3) kg/m3	External Thickness 0,50-0,60-0,70-0, 80 mm Internal Thickness 0,40-0,50-0,60-0, 70-0,80 mm	λ = 0,022 W/mK	PUR Bs2d0 EN 13501-1 Bs3d0 EN 13501-1 Cs2d0 EN 13501-1 Cs3d0 EN 13501-1 PIR Bs1d0 EN 13501-1, FM Bs2d0 EN 13501-1

Load Tables & “U-R” Values

Material Thickness	Insulation Thickness	Span	Span Distance (mm) p=kg/m²
Material Thickness	Insulation Thickness	Span	1000	1500	2000	2500	3000	U Value	R Value
0,50 / 0,40	40	2	305	194	143	113	94	0,55	1,81
	40	3	351	223	164	130	108	0,55	1,81
	50	2	391	248	181	143	119	0,44	2,27
	50	3	449	285	209	165	137	0,44	2,27
	60	2	447	303	221	174	144	0,37	2,73
	60	3	549	348	254	200	165	0,37	2,73
	80	2	653	415	301	236	194	0,27	3,64
	80	3	751	477	346	272	224	0,27	3,64
	100	2	831	529	384	300	246	0,22	4,54
	100	3	956	608	441	345	283	0,22	4,54
	120	2	1011	645	467	365	299	0,18	5,45
	120	3	1162	742	538	420	344	0,18	5,45
